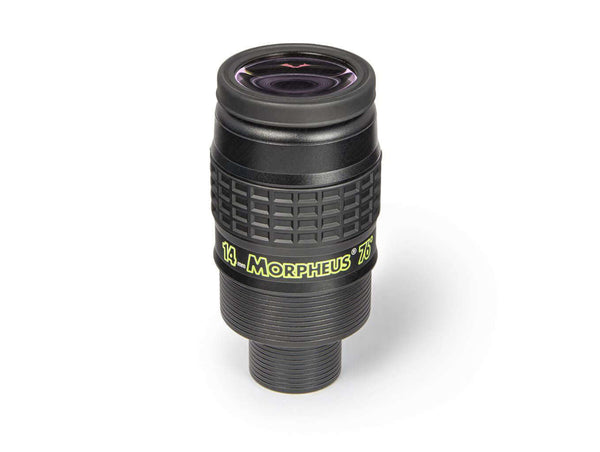

Baader Planetarium MORPHEUS 76° Widefield 14mm Eyepiece (MORPH-14)
2954214
Baader Planetarium MORPHEUS 76° Widefield 14mm Eyepiece (MORPH-14)
2954214
Products in the Same Family
Why Purchase from All-Star Telescope?
Free Expert Support
Whether you are a first timer needing help with setting up or an enthusiast that can't quite make that one thing work, our expert staff are ready to support your needs. With decades of knowledge and first hand experience we've been there and we can help you through it!
Stress Free, Secure Transactions
You can trust purchasing and delivery with All-Star Telescope. All of our transactions are 100% secure and Level 1 PCI DSS compliant thanks to Shopify's ShopPay platform. For additional protection, we insure 100% of the value of every shipment we make. If it get's lost during shipment, we replace it. If it gets damaged during shipment, we replace it. We make sure your product arrives exactly as you would expect it to; we promise.
We also ensure privacy protection. We never keep any of your credit card information on file and any of your personal data is stored according to our policies.
30 Day Return Policy
Buy with confidence knowing that we accept returns up to 30 days after purchase. We want you to have something you will actually use and we are confident that we keep good quality products in our store with No Junk.
Price Match Promise
Shipping around for the best price is tough, we make it easier by offering the best pricing in the market. But if you find a better price on an in-store item somewhere else we will match it!
Product Description
The eyepiece is half the optics of a telescope - and when trying to use the optical system to its limits even good middle class eyepieces are becoming the limiting factor. Morpheus® eyepieces provide a sharp image right to the edge of the (true) 76° field of view. The brightness and richness of contrast offers a new dimension in eyepiece design. These eight-lens eyepieces with Phantom Coating® Group excel at planetary observation as well as deep-sky objects - especially when serving as photographic projection eyepieces due to their flat field design.
All Morpheus® wide-field eyepieces with 4.5 to 17.5 mm focal length form the perfect complement to your low magnification eyepieces. Even at highest magnification, each Morpheus® eyepiece does provide a larger field of view than what is claimed for by many eyepieces with over 80 degrees of apparent field of view. The absence of distortion in the eyepiece enables you to oversee the full field at once and to easily find the best viewing position, while enjoying a spacewalk feeling unmatched by others. You will see deep sky objects wonderfully embedded into their stellar surroundings. In addition, the large, sharp field of view gives you much more viewing time on non-motorized (Dobsonian) telescopes without touching the telescope and w/o changing the eyepiece.
All Morpheus® eyepieces feature both 1.25" and 2" nosepieces without the much hated undercuts. Still all Morpheus® eyepieces are perfectly safe against slipping due to their multitude of individual Safety-Kerfs cut into the barrels. The 2" nosepiece is integrated into the eyepiece body which saves about 21 mm in focus travel. This becomes especially useful with ultra low focal plane (visual Newtonian) telescopes. And for many other scopes it does eliminate the need for a 2 "/ 1¼" reducer adapter.
Due to their shape, design and low weight, the Morpheus® eyepieces are the best eyepieces to use in a binoviewer. No other eyepiece series has been designed consistently for this use, while offering the same (true) field angle, minimized vignetting and providing a 55 mm outer housing diameter throughout, to allow binoviewing even for children with just 55 mm interpupillary distance. The slim outer body has been made as small as possible, without any metal added simply for look or feel.
The "eye-lens-group" is sized so very large, to make the viewing behaviour totally stress-less. Even at too large a viewing distance the object remains visible - a feature very appreciated by public observatories with lots of untrained visitors. You will not find an eyepiece that gives a better "space-float effect". Especially when using both eyes, the edge of the field of view virtually disappears, creating that famous spacewalk-feeling - like "floating in space".
Just like the modular Hyperion® eyepiece series with 68° field of view, the 76° Morpheus® eyepiece series is also especially suitable for photography. The distortion is even lower than in the Hyperion® eyepieces, despite the larger field of view. The M43/T-2 Photo/Video adapter ring(# 2958080) fits onto all Morpheus® eyepieces. With this optional M43/T-2 connector, you can use virtually any DSLR or system camera for classic eyepiece projection through the established system of T-2 bayonet rings and attach the eyepiece instead of a lens at the correct projection distance in front of the camera.
For the so-called afocal eyepiece projection, an M43/SP54 extension ring (# 2954251) is also available, opening up to a world of SP54 camera-lens step up/step-down rings (Hyperion® DT-rings) . With this system of rings any Morpheus® eyepiece can be mounted so closely onto the front lens of a large photo-objective that the eyelens of the eyepiece and the camera front lens almost make contact - but just almost! Exactly this precise distance control allows for good illumination of the camera sensor during afocal projection.
Features
- Metal / Rubber eyecup: The folding rubber eyecup now comes with an integral M43 threaded metal ring (this accounts for the complete line of Morpheus-eyepieces). The threaded attachment enables the eyecup to stay soft and compliant, while keeping the eyecup securely attached to the eyepiece while folding it up or down.
- M43/M43 extension: all Morpheus eyepieces now include the M43 extension #2954250. It is used for optimizing the position of the eyecup in setting the personal viewing position as well as for adapting a camera with M43-thread (eg. Sony / Panasonic). In addition this extension serves also as clamping surface for smartphone holders
- Eyepiece-Holster: Not enough space at the telescope? The pouch does not only protect the eyepiece – you can even use it as a belt pouch or attach it to your tripod.
- Focal-Length Indicator-Clips: these stainless steel clips can be attached e.g. to the eyepiece holster and one or more of the little indicator fingers is bent upward - according to the focal length used. In this way the user experiences a taktile ("braille"-equivalent) sensation, being able to identify each eyepiece without looking and without using a flashlight
- Winged Eyecup: Soft and compliant rubber-eyecap with foldable side shield. Provides the ultimate comfort and exclusion of stray light necessary for binoviewing with eyeglasses
What's in the Box
Specifications
MANUFACTURER | Baader Planaetaurium |
SKU (#) | 2954214 |
NET WEIGHT (KG) | 0.42 |
EYEPIECE SERIES | Morpheus |
SPECIFICATIONS | |
FOCAL LENGTH | 14 mm |
APPARENT FIELD OF VIEW | 76° |
EYE RELIEF (MM) | 18.5 mm |
AR-COATING | Phantom Coating® Group |
PARFOCAL EYEPIECES | Yes |
SPECIAL FEATURES | Photo-luminescent engraving: lets you find the correct eyepiece at all times |
BARREL SIZE (IN) | 1.25", 2" |
OPTICAL DESIGN | Wide Angle |
SPECIALITY | Eyepiece projection: classical |
EYEPIECE DESIGN | |
FIELD STOP DIAMETER | 18.85 mm |
FIELD STOP DISPLACEMENT TO REFERENCE PLANE | +/- 0mm |
NUMBER OF LENS ELEMENTS | 8 |
NUMBER OF GROUPS | 5 |
BACKFOCUS GAIN W. 2“ BARREL (MM) | 21 mm |
SLIP PROTECT SAFETY | Safety Kerfs |
EYEPIECE BODY ABOVE REFERENCE PLANE (MM) | 85 mm |
LENGTH OF 1¼" BARREL (MM) | 24 mm |
LENGTH OF 2" BARREL (MM) | 21 mm |
OUTER DIAMETER | 55 mm |
CONNECTIONS | |
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, M43 |
INNER CONNECTION (LENS SIDED) | Thread, M28.5 |
OUTER CONNECTION (LENS SIDED) | Barrel, 1.25", 2" (50.8mm) |
CAMERA THREAD | M43 |
THREADED FOR FILTERS | Yes |
