Brand: Celestron

Celestron AstroMaster 130EQ Newtonian w Motor Drive (31051)

31051

Brand: Celestron

Celestron AstroMaster 130EQ Newtonian w Motor Drive (31051)

31051

Discover our Solar System with the Celestron AstroMaster 130EQ! You"ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 130EQ provides bright, clear images of the Moon, planets, star clusters, and more.
  • Manual German equatorial mount with setting circles - to accurately locate and track sky objects
  • Adjustable, full height steel tripod with deluxe accessory tray
  • Quick and easy no-tool setup
  • Accessories include a 20mm and 10mm eyepiece, a finderscope, and a motor drive
  • Motor drive automatically tracks celestial objects as they appear to move across the night sky
  • Download Starry Night Basic Software with a 36,000 object database, printable sky maps and enhanced images including 3D renderings of stars, exoplanets, and galaxies
Special Order
$379.95 USD

Easy Payment Options with .

How do I Special Order?
Special Order
$379.95 USD

Easy Payment Options with .

How do I Special Order?
Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise
Full Details What Can I See? What's in the Box? Specifications Reviews and Questions Articles, Videos, Software, Links

Product Description

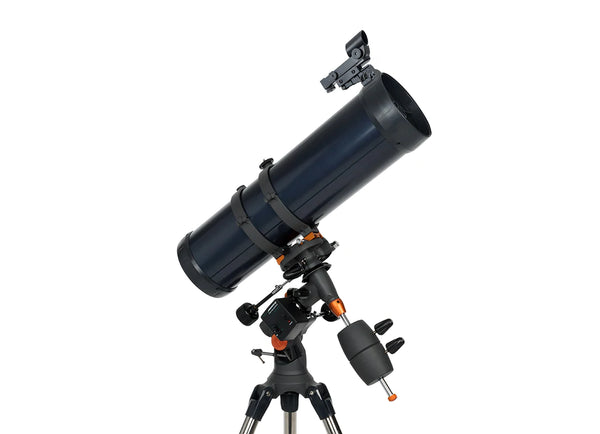

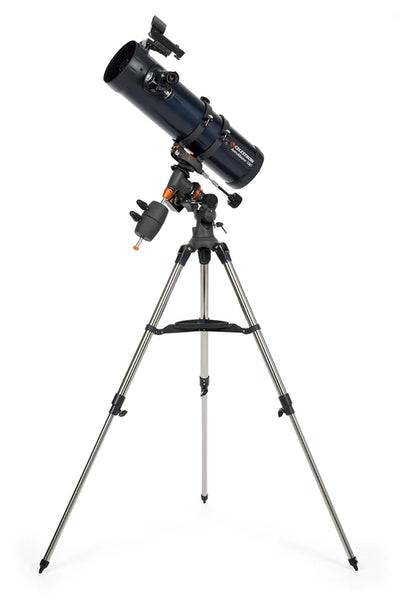

Discover our Solar System with the Celestron AstroMaster 130EQ! You"ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 130EQ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing.

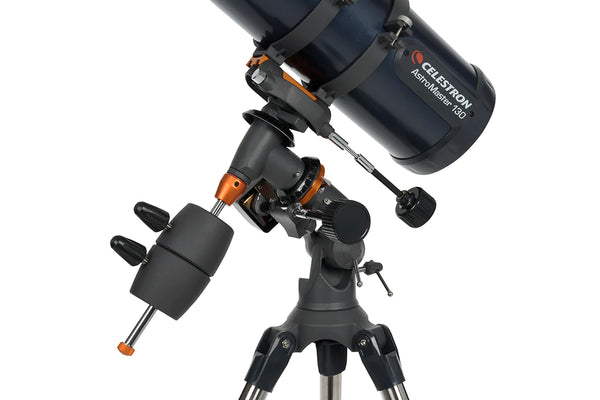

Manual German Equatorial telescope

The AstroMaster mount comes with two slow motion control knobs that allow you to make fine pointing adjustments to the telescope in both Right Ascension and Declination axes, also referred to as RA and DEC.

Accessories Included

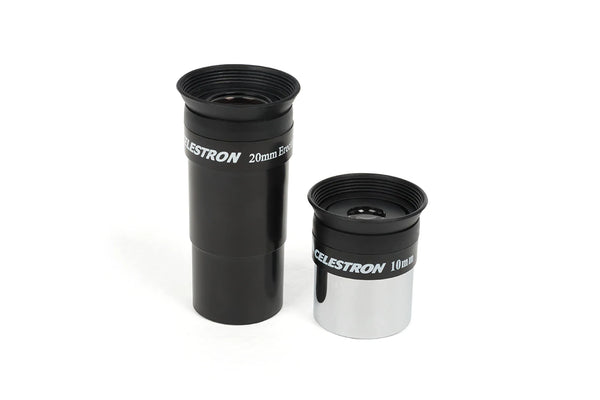

Accessories include a 20mm and 10mm eyepiece, a finderscope, and a motor drive. The two eyepieces offer different magnifications for low and high powered views.  The 20mm has a built-in erect image corrector.

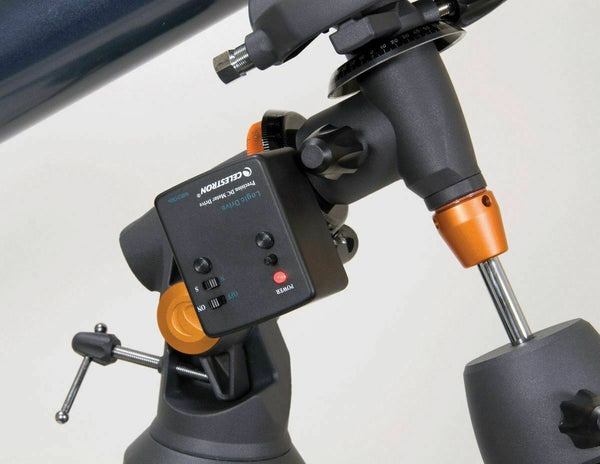

Motor Drive

Turn your manual German equatorial mount into a tracking mount by adding the included RA motor drive to your telescope. This easy-to-install RA motor drive compensates for the Earth’s rotation, so the telescope tracks a star’s movement through the night sky from east to west.  When the telescope mount is properly polar aligned and the RA drive is attached and running, the user need only make occasional adjustments in declination (Dec) to keep an object in the eyepiece for long periods of time.

The Celestron single-axis motor drive runs on a 9V battery, so there are no cords to get in the way.  The drive can be used in either the Northern or Southern Hemisphere.  To change hemispheres (reverse the motor’s direction), simply by flip the N/S switch on the face of the motor drive.  It is also simple to change the speed of the motor.  A "Speed Rate Regulator" knob is located just under the power indicator and can be turned in either direction to slow down or speed up the motor.  Since solar system objects like the Moon and planets move through the sky at different rates than deep-sky objects do, this gives you the ability to match the motor’s speed to the particular type of object you are observing.

Starry Night Software

Download Celestron’s Starry Night Software and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge to view our solar system and beyond.

What can I see with a Celestron AstroMaster 130EQ Newtonian w Motor Drive (31051)?

Here are some simulated views of common objects. Results with your telescope will vary with viewing conditions, obrits, equipment and more.

Jupiter with

20mm Eyepiece - 33x Magnification

(Included with This Telescope)

Jupiter with

10mm Eyepiece - 65x Magnification

(Included with This Telescope)

Jupiter with

5mm Eyepiece - 130x Magnification

Sold Separately

Moon with 20mm Eyepiece

33x Magnification

(Included with This Telescope)

Moon with 10mm Eyepiece

65x Magnification

(Included with This Telescope)

Moon with 5mm Eyepiece

130x Magnification

Sold Separately

Andromeda with 36mm Eyepiece

18x Magnification

Sold Separately

Andromeda with 20mm Eyepiece

33x Magnification

(Included with This Telescope)

Andromeda with 10mm Eyepiece

65x Magnification

(Included with This Telescope)

What's in the Box

  • Optical tube
  • Tripod and mount (preassembled)
  • 20mm eyepiece with built-in erect image corrector
  • Standard 10mm eyepiece
  • Red-dot finderscope
  • Manual

Specifications

OPTICAL TUBE INFO
Optical Design: Newtonian Reflector
Aperture: 130mm (5.11")
Focal Length: 650mm (25.6")
Focal Ratio: f/5
Focal Length of Eyepiece 1: 20mm (.78") with built-in erect image corrector
Magnification of Eyepiece 1: 33x
Focal Length of Eyepiece 2: 10mm (.4") standard
Magnification of Eyepiece 2: 65x
Barlow Lens: Not Included
Finderscope: Built-on StarPointer™ red dot finderscope
Star Diagonal: None
Optical Tube: Aluminum
Highest Useful Magnification: 307x
Lowest Useful Magnification: 19x
Limiting Stellar Magnitude: 13.1
Resolution (Rayleigh): 1.07 arc seconds
Resolution (Dawes): .89 arc seconds
Light Gathering Power (Compared to human eye): 345x
Secondary Mirror Obstruction: 44mm (1.73")
Secondary Mirror Obstruction by Diameter: 34%
Secondary Mirror Obstruction by Area: 11%
Optical Coatings: Glass mirrors coated with aluminum and SiO2
Optical Tube Length: 610mm (24")
Optical Tube Diameter: 160.5mm (6.32")
Optical Tube Weight: 7.7 lbs (3.5 kg)
Dovetail: CG-3 Dovetail bar
MOUNT INFO
Mount Type: CG-3 Equatorial
Height adjustment range (includes mount and tripod): 812.8mm - 1295.4mm (32" - 51")
Tripod Leg Diameter: 31.75mm (1.25") steel
Accessory Tray: Yes
Tripod Weight: 7.6 lbs (3.44 kg)
Slew Speeds: Manual
Dovetail Compatibility: CG-3 saddle plate
Software: Celestron Starry Night Basic Edition Software and SkyPortal App
Total Kit Weight: 17 lbs (7.71 kg)
