Brand: Pegasus Astro

Pegasus Power Supply Unit 12V / 10A – 120W (PEG-PSU-21 US Plug)

PEG-PSU-21

Brand: Pegasus Astro

Pegasus Power Supply Unit 12V / 10A – 120W (PEG-PSU-21 US Plug)

PEG-PSU-21

  • 4 x 12V DC Power outlets for your equipment (ON/OFF via software)
  • 10 Amps of total power
  • A Voltage Adjuastable Output (Can be switched ON/OFF – 3V, 5V, 8V, 9V, 12V)
  • 2 Channels PWM Dew Heaters – RCA Outputs (Adjust levels via software)
  • Humidity and Temperature Sensor (included)
  • Auto Tune Dew Heaters (Auto-Dew)
  • Reverse Polarity Protection / Overvoltage Protection
  • USB / PC Controlled or Standalone Operation out of the box
  • Lightweight and extremely compact CNC aluminum enclosure
$70.00 USD

Easy Payment Options with .

$70.00 USD

Easy Payment Options with .

Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise
Full Details What's in the Box? Specifications Reviews and Questions

Product Description

Our sealed and certified switching power supply unit is the perfect match for our Pegasus Astro Products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a power cord (1.8m) for your country type.

  • Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
  • Over Voltage: The power supply will be auto recovered when faults remove
  • Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
  • No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
  • Protection class I, (ITU-T K.21 Surge 6KV on request)

    What's in the Box

    • Power

    Specifications

    Type Value
    Output Voltage: 12.5V
    Loading: 0-10 Amps
    Max. Power : 120 Watt
    Input Voltage Range: 90-264V
    Frequency: (47-63)Hz

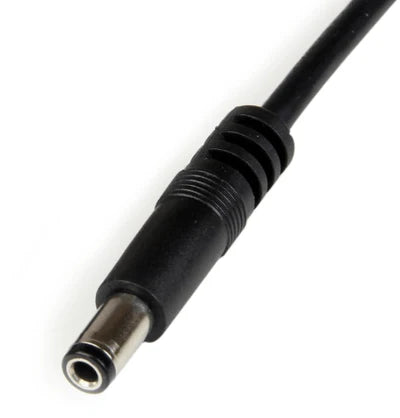

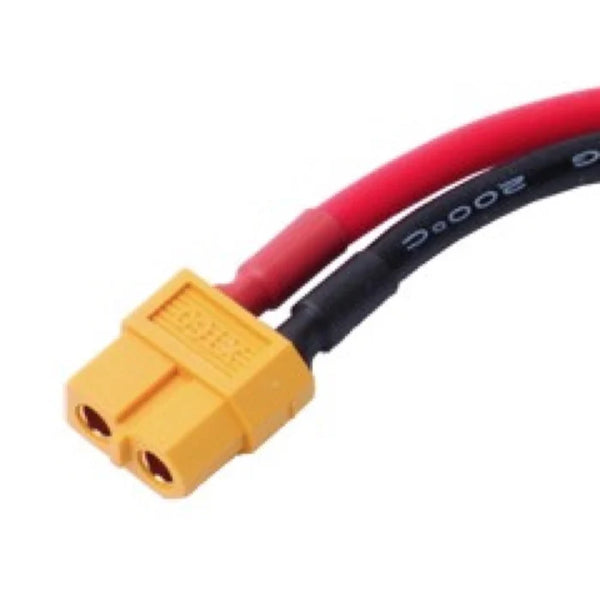

    Connector Size: 5.5 * 2.1mm or 5.5 * 2.5mm or XT60
    Cord Length: 150cm / 5 feet
    Regulated Output With Low Ripple Noise
    Sealed / Protected Enclosure  humidity / dust cannot enter
    Safety Agency Requirements and EMI/EMS Certified
    Efficiency level (ErP)  VI
    CE and FCC certificate acquired
    Dimensions: 169 x 61 x 39 [mm]
    • Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
    • Over Voltage: The power supply will be auto recovered when faults remove
    • Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
    • No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
    • Protection class I, (ITU-T K.21 Surge 6KV on request)
