Brand: ZWO

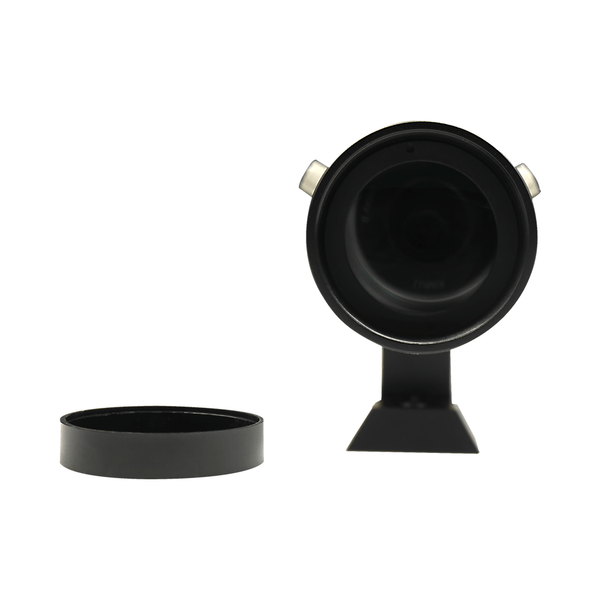

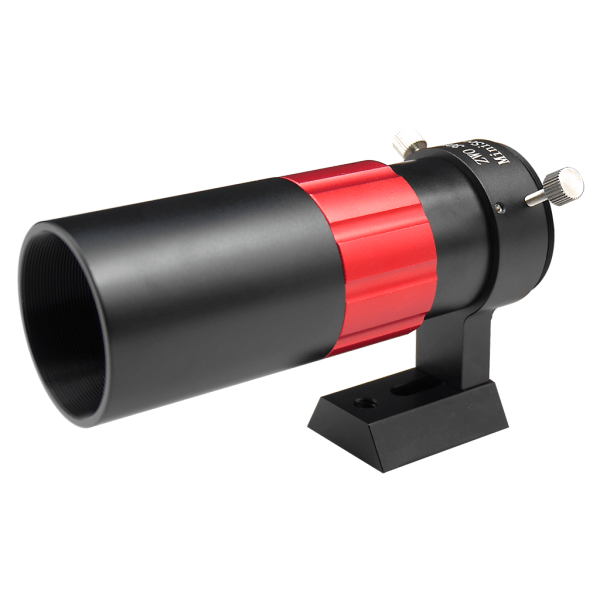

ZWO 30mm f4 Mini Guide Scope (ZWO-30F4)

ZWO-30F4

Brand: ZWO

ZWO 30mm f4 Mini Guide Scope (ZWO-30F4)

ZWO-30F4

This is a great, lightweight guide scope. Compatible with any ZWO planetary or guide camera and capable of vastly improving your astrophotography mount's performance. Fits any standard finder shoe.
  • Lens Diameter: 30 mm
  • Focal Length: 120 mm
  • Weight (include guider ring and dovetail): 250 g
  • Back Focus: adjustable,(0~20 mm)
  • Focuser Type: front part focuser
  • Tube travel: 20 mm
  • Dovetail includes 1/4″ screw hole.
$99.00 USD

Easy Payment Options with .

$99.00 USD

Easy Payment Options with .

Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise
Full Details Specifications Reviews and Questions Articles, Videos, Software, Links

Product Description

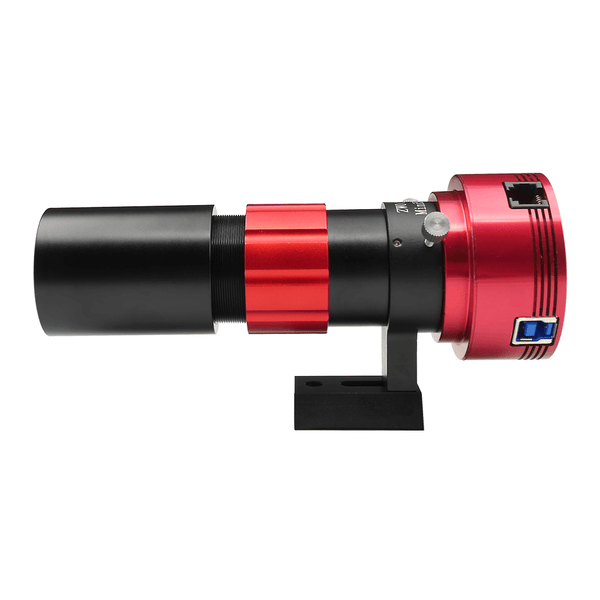

This guide scope is compatible with all ASI cameras.

The ZWO Mini Guide Scope is a 30mm f/4 refractor guide scope in a small, easy to use package. It even comes ready to use with guider rings and dovetail for simple mounting. ZWO made sure this system was lightweight (1.1 lb.), allowing you to use it on most any scope or mount. Add an inexpensive brand-specific t-ring to the ZWO Mini Guidescope and attach it to your DSLR camera. It can be used as a finder with optional eyepiece (reticle or otherwise) as long as you view straight-through (no diagonal).

Specifications

  • Lens Diameter: 30 mm
  • Focal Length: 120 mm
  • Weight (include guider ring and dovetail): 250 g
  • Back Focus: adjustable,(0~20 mm)
  • Focuser Type: front part focuser
  • Tube travel: 20 mm
  • Dovetail includes 1/4″ screw hole.

Customer Reviews

Based on 8 reviews
88%
(7)
0%
(0)
13%
(1)
0%
(0)
0%
(0)
C
C.B.
Solid guide scope

This is my second f4 mini guide scope, it is well built and its aperture / focal length meet my needs.

M
M.L.
ZWO 30mm guide scope - an impressive small parcel

This mini guide scope is well constructed and highly suitable for auto guiding (and suitable as a finderscope). All this in a fine anodized finish. Highly recommended.

T
T.F.
ZWO 30mm f4 Mini Guide Scope (ZWO-30F4)

It’s been too smokey to use it properly since I have received it.

D
D.S.
New astrophoto set up

My experience working with All-Star has been first rate, The quality of the products and the support team are best in class. I am impressed with their knowledge of the changing world of deep sky equipment. Glad to have them close..

C
C.
ZWO 30mm for guiding

Bought it to replace heavy 60mm guide scope for a 80mm refractor. If Edmonton is Bortle 9, then my backyard is Bortle 20, walkway light and neighbour search light. Despite this I can guide with the ZWO 30. Nice quality, light weight, and does what I had hoped it would.
