ZWO ASI462MM Planetary Mono Camera (ASI462MM)

ASI462MM

Brand: ZWO

ZWO ASI462MM Planetary Mono Camera (ASI462MM)

ASI462MM

  • Sony IMX462
  • 1/2.8” 5.6x3.2mm Format
  • 12bit ADC
  • 2.9um pixel size
  • Well depth of 11.2ke
  • Total of 2.1 mega pixel accommodating a resolution of 1936*1096
  • Ultra-low read noise of 0.47e- to 2.46e-
  • 89% QE
  • USB 3.0
  • 136 FPS
$299.00 USD

Easy Payment Options with .

$299.00 USD

Easy Payment Options with .

Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise
Full Details What's in the Box? Specifications Reviews and Questions Articles, Videos, Software, Links

Product Description

IR Sensitive Planetary Camera

ASI462MM adopts the Sony IMX462 sensor, featuring 12 bit ADC, high sensitivity in IR wavelength and low readout noise, this camera is considered as the iteration of the ASI290MM. It's very suitable for planetary imaging, lunar and solar imaging.

STARVIS Technology

The STARVIS Technology brings better imaging performance to the camera in low light conditions.

DDR3 Memory

The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 memory to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.

Note that the DDR3 memory is NOT available in the first 200 early-bird cameras. It’s only available in the official version.

We do not provide DDR3 memory version replacement or upgrade for the early-bird batch.

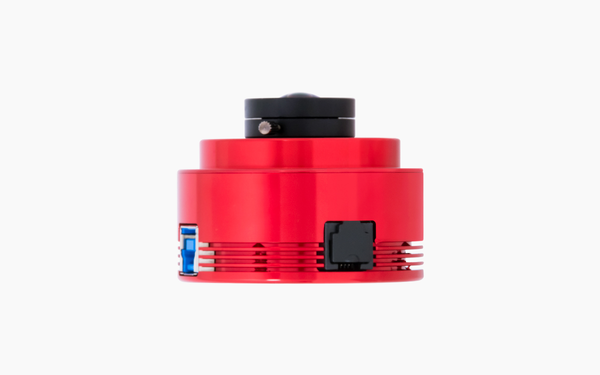

USB 3.0 & ST4 Port

USB 3.0 Port: Provides 5Gb bandwidth to let the camera run at 136.1fps (10bit, high speed mode) or 63.9fps (12bit, normal mode) at full resolution (2Mega)

ST4 Port: Can be used to connect with auto guide port of mount for guiding.

  • 136.1 fps 10bit high speed mode
  • 63.9 fps 12 bit normal mode
  • 5Gb bandwidth
  • ST4 Port Can be used to connect with auto guide port of mount for guiding

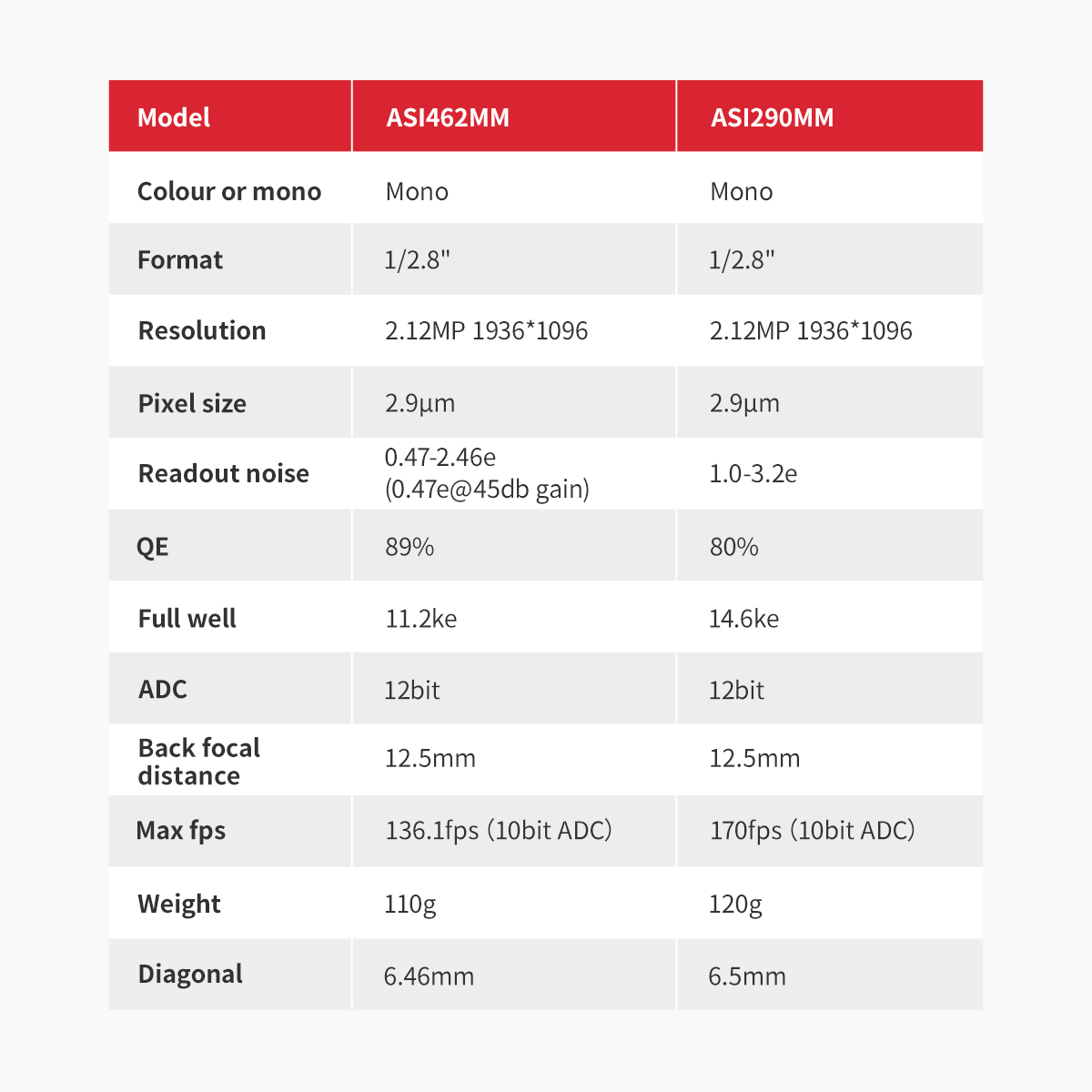

ASI462MM vs ASI290MM

As the upgraded version of ASI290MM, ASI462MM has achieved great improvements regarding QE and readout noise.

Camera Performance

Low readout noise & high QE value

ASI462MM is integrated with HCG mode, which can effectively reduce readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. At gain 80, the HCG mode is automatically turned on; the dynamic range reaches a level close to 12stops, and the readout noise can be as low as 0.47e.

QE value and readout noise are some of the most important specifications for astronomical cameras. High QE and low readout noise are essential to improve image SNR(Signal to Noise Ratio).

The QE peak value of ASI462MM is around 89% (Relative response).

AR Protective Window

ASI462MM features the AR(Anti-Reflective) coating on its protective glass.

Diameter of the window: 21mm. Thickness: 1.1mm

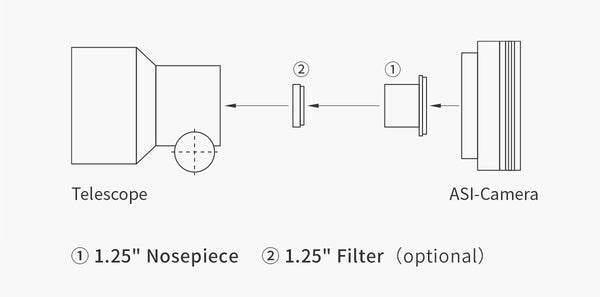

Connection Methods

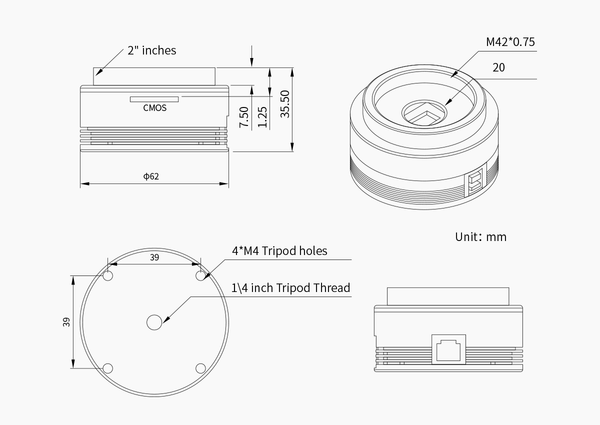

Structural Dimension Diagram

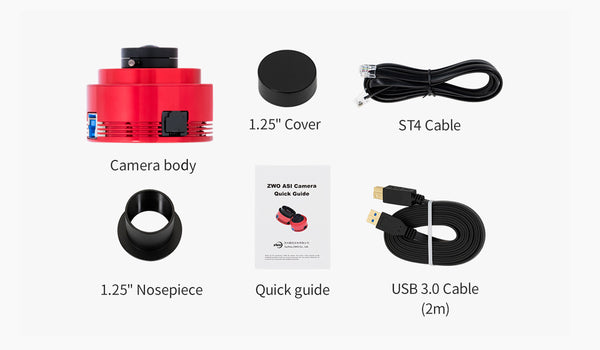

What's in the Box

  • Camera
  • 1.25" Cover
  • ST4 Cable
  • 1.25" Nosepiece
  • Quick Guide
  • USB 3.0 Cable (2m)

Specifications

Sensor SONY IMX462 CMOS Mono
Format 1/2.8"
Diagonal 6.46mm
Resolution 2.1 Mega Pixels, 1936*1096
Pixel size 2.9µm
Sensor size 5.6mm * 3.2mm
Max fps 136.1FPS (10bit ADC)
Shutter Rolling shutter
Exposure range 32µs-2000s
Readout noise 0.47~2.46e (0.47e@45db gain)
QE peak 89%
Full well 11.2ke
ADC 12bit
USB interface USB3.0
Adapters 2"/ 1.25"/ M42*0.75
Protect window AR
Dimension φ62mm*35.5mm
Weight 0.11kg
Back focus length 12.5mm
Working temperature -5°C~50°C
Working relative humidity 0~80%
Supported OS Windows, Linux & Mac OSX
