Brand: SharpStar

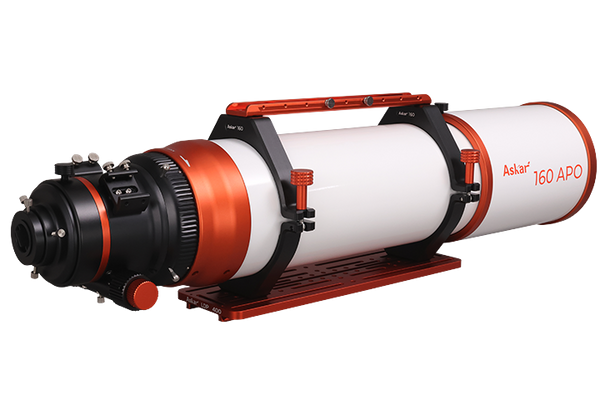

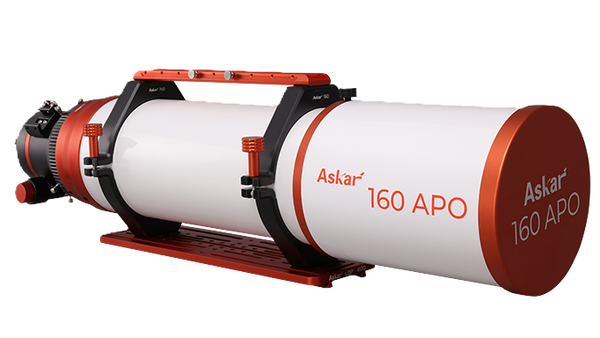

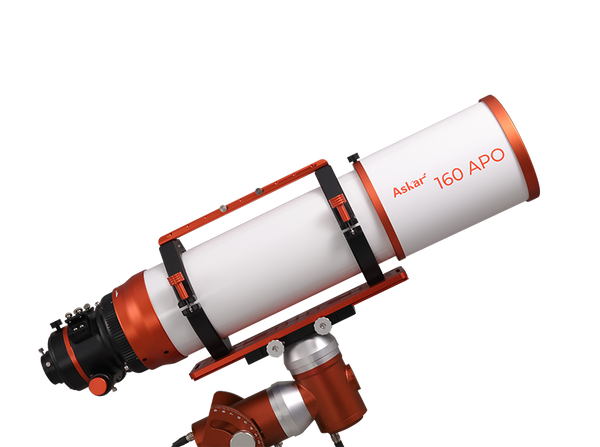

Askar 160APO Refractor Telescope (ASKAR-160APO)

ASKAR-160APO

Brand: SharpStar

Askar 160APO Refractor Telescope (ASKAR-160APO)

ASKAR-160APO

Unlock stunning detail and breathtaking views with the Askar 160APO — where precision meets excellence for the discerning astrophotographer and visual astronomer.
  • Triplet APO design
  • ED glass
  • Retractable lens tube
  • Rudder-type locking ring
  • 2"/1.25" visual adapters
  • 2 finder bases
  • 360° rotator
  • 3.5" R&P focuser
  • 1: 10 fine adjustment
  • Retractable lens hood
  • 400mm Losmandy Dovetail plate
  • Heightened tube rings
  • CNC big locking screws
  • Gross weight 13.6kg
Special Order
$3,524.00 USD

Easy Payment Options with .

How do I Special Order?
Special Order
$3,524.00 USD

Easy Payment Options with .

How do I Special Order?
Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise

Recommended Accessories

Full Details What Can I See? What's in the Box? Specifications Reviews and Questions Articles, Videos, Software, Links

Product Description

The Askar 160APO is an OTA with a 160mm aperture, 1120mm focal length, and f/7 native focal ratio.

The aperture of 160mm gives it an inherent advantage in terms of light-gathering power, resolution, brightness, and contrast, allowing the photographer to gather more light and present more details and brighter objects in the image. Along with more light coming into the astrograph, the limiting magnitude can reach 12.79.

The Askar 160APO adopts a triplet air-spaced APO lens design, including one piece of ED glass.

The Askar APO series employs special optical designs and multiple lens elements to correct chromatic aberration, naturally providing higher-quality object details and color accuracy.

In the refractor's element structure, increasing the number of lens elements and designing lens combinations can effectively improve chromatic aberration correction. However, this also means increased production costs and design complexity.

As a large aperture, long focal ratio telescope, the Askar 160APO was designed with portability in mind. The shortest overall length is only 883mm, the net weight is 11.4kg, and the gross weight is 13.6kg (including the handle, tube ring, and dovetail plate).

Features

  • Losmandy Dovetail Plate: The length of the dovetail plate has been extended to 400mm, which is more convenient for balancing on the mount.

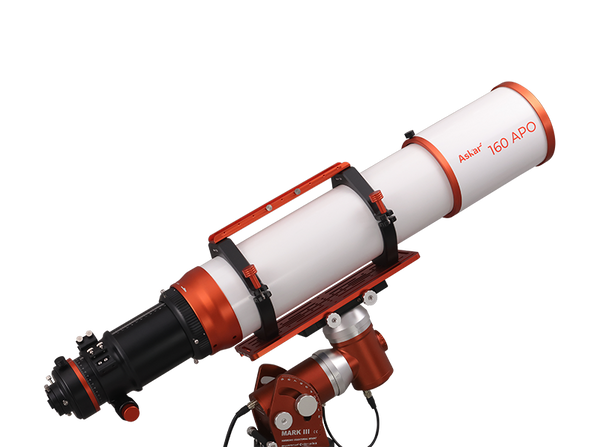

  • Integraded Retractable Rear Lens Tube: Strengthens the overall stability and ensures that the optical axis will not be affected when the lens tube is stretched, thus guaranteeing the quality of the image. The retractable segment also features a locking ring that makes it easy to loosen or tighten.
  • Extended 316mm Handle: Special slot design, and can be a base for installing a finder scope.
  • Dual-Speed Rack and Pinion Large 3.5 Inch Rigid Focuser: Compatible with most motorized focusers on the market. Includes a high-precision scale printed on the 100mm focusing travel.
  • Integrated 360° Rotator: The rear of the focuser features a high-precision rotator, along with precise scales for convenient adjustment and saving of rotation angles, enabling precise rotation. It is also equipped with an enlarged rotator locking screw that can be easily secured even under high loads.
  • Visual Observation: The focuser interface at the rear comes with a 1.25"/2" adapter, so the 160APO can easily achieve focus when connected to 1.25" or 2" diagonals or various eyepieces. Because of the retractable lens tube design, it can also be attached to a binoviewer for visual observation.

What can I see with a Askar 160APO Refractor Telescope (ASKAR-160APO)?

Here are some simulated views of common objects. Results with your telescope will vary with viewing conditions, obrits, equipment and more.

Jupiter with

25mm Eyepiece - 39x Magnification

(Sold Separately)

Jupiter with

10mm Eyepiece - 98x Magnification

Sold Separately

Jupiter with

5mm Eyepiece - 196x Magnification

Sold Separately

Moon with 25mm Eyepiece

39x Magnification

(Sold Separately)

Moon with 10mm Eyepiece

98x Magnification

Sold Separately

Moon with 5mm Eyepiece

196x Magnification

Sold Separately

Andromeda with 36mm Eyepiece

27x Magnification

Sold Separately

Andromeda with 25mm Eyepiece

39x Magnification

(Sold Separately)

Andromeda with 10mm Eyepiece

98x Magnification

Sold Separately

What's in the Box

  • A 160APO OTA
  • A pair of tube rings
  • A handle
  • An Askar 400mm Losmandy dovetail plate
  • An aluminum box
  • A manual

Specifications

Aperture size 160mm
Focal length 1120mm
Focal ratio f/7
Objective lens Triplet air-spaced APO (including one ED glass)
Total length(without accessories) 883mm (when dew shield is contracted)
996mm (when dew shield is extended)
Length of the rear retractable lens tube 115mm
Total Weight  11.4 kg (OTA)
13.6 kg (with tube ring and dovetail)
Rear-end adapter type 2" adapter, 1.25" adapter

Product Size Diagram

160APO Product Size Diagram

Instruction of using the 160APO retractable lens tube (for eyepiece observation, 1.0x flattener, and 0.8x reducer)

160APO Retractable Lens Tube

The Locking Screw Position Diagram

160APO Locking Screw Position

160APO EAF (optional) Installation

160APO EAF Installation

Optical Path Diagram

160APO Optical Path Diagram
