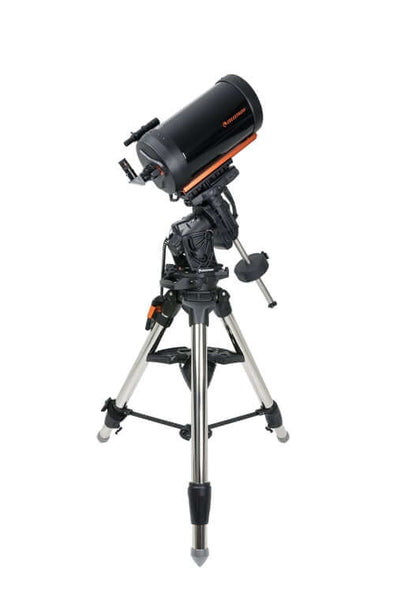

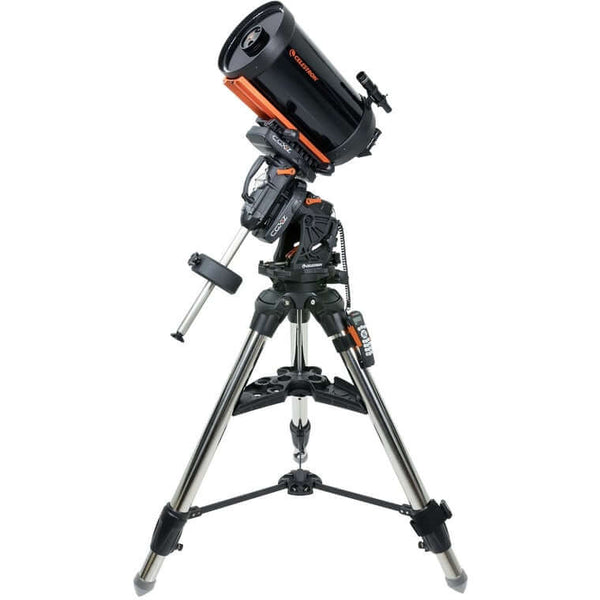

Celestron CGX-L Equatorial 925 Schmidt-Cassegrain Telescope (SCT) (12070)

12070

Brand: Celestron

Celestron CGX-L Equatorial 925 Schmidt-Cassegrain Telescope (SCT) (12070)

12070

CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, & innovative features that fully support large telescopes, imaging kits, & the latest in wireless tech accessories.
  • 9.25" Schmidt-Cassegrain Optical Tube Assembly
  • Aluminum Optical Tube
  • Celestron's premium StarBright XLT coatings
  • 2350mm focal length (f/10)
  • 25mm eyepiece included (94x)
  • Visual back allows for use with 1.25" accessories
  • 6x30 finderscope to help accurately find objects
  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
  • Includes dovetail rail compatible with CGE mount
11% OFF
$5,799.00 USD
Save: $749.95

Easy Payment Options with .

What is a Backorder?
11% OFF
$5,799.00 USD
Save: $749.95

Easy Payment Options with .

What is a Backorder?
Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise

Recommended Accessories

Full Details What Can I See? What's in the Box? Specifications Reviews and Questions Articles, Videos, Software, Links

Product Description

Celestron's CGX-L Computerized Equatorial mount is the latest addition to our fully computerized equatorial mount series. Capable of carrying Celestron's largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Key design goals included larger 144mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, we've made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport. COMPACT. ERGONOMIC. INNOVATIVE.

CGX-L Features

  • Increased 75 lb load capacity. Exceptional load capacity to weight ratio
  • Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
  • Larger 144mm diameter worm wheels to better and more accurately drive heavier loads
  • Longer 270mm dovetail saddle to better support larger optical tubes
  • Massive 70mm stainless steel tripod legs with a wider stance for improved stability under heavy loads
  • Accessory tray holds three 1.25" and two 2" eyepieces with an upright stand for your smartphone or tablet
  • Heavy duty, 31.5mm stainless steel counterweight shaft to support additional counterweights
  • Optional add-on polar axis finderscope custom designed for CGX and CGX-L
  • Supports WiFi and wireless operation accessories such as StarSense AutoAlign and SkyPortal WiFi Module (sold separately)

Mount Features

  • Compact, lower profile equatorial head provides improved stability and portability. Sturdier and more rigid with quicker dampening time
  • Motors provide more torque, better slewing and tracking under heavy loads
  • Heavy duty belt-drive system minimizes backlash while providing smooth motor operation at full capacity
  • Clear windows built into motor covers so pulleys and belts can be monitored
  • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
  • Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags
  • Internal hard stops for both axes prevent cable tension and tripod strike
  • Internal optical sensors on both axes for simple and safe remote operation
    • Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
    • Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
  • Includes Celestron's PWI telescope control software, co-developed by PlaneWave Instruments. Software features multi-point mount modeling for extremely precise pointing accuracy
  • Software Polar Align: "All-Star Polar Alignment" allows quick and very precise polar alignment. Align on any bright named star without extra polar alignment accessories, apps, or other assistance
  • Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range
  • Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle
  • +20° of additional tracking past the meridian on either side
  • Tripod has a widened stance for added stability. The minimum tripod height has also been lowered per user feedback
  • Tripod legs can be collapsed with accessory tray installed for faster setup and transport

Ergonomics

  • Integrated handles for easy transport and portability
  • Ergonomically designed dovetail clamping knobs
  • Innovative and improved polar alignment adjustment system
  • Ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads. Stationary latitude knob with a linkage system greatly reduces the amount of friction when polar aligning the mount. Redesigned azimuth adjustment with low-friction Teflon bearings to make adjustments easy under full load. No more binding, rough adjustments!
  • Easy to read latitude scale

Electronics

  • NexStar+ hand control with USB port
  • USB 2.0 port used to connect directly to PC with PWI Software
  • 2 available autoguider ports for optimum cable management
  • PEC sensor and PPEC ready
  • Threaded 12VDC power input barrel connector
  • Internal Real Time Clock (keeps time and site information saved)
  • On/Off rocker switch with red LED

What can I see with a Celestron CGX-L Equatorial 925 Schmidt-Cassegrain Telescope (SCT) (12070)?

Here are some simulated views of common objects. Results with your telescope will vary with viewing conditions, obrits, equipment and more.

Jupiter with

25mm Eyepiece - 94x Magnification

(Included with This Telescope)

Jupiter with

10mm Eyepiece - 235x Magnification

Sold Separately

Jupiter with

5mm Eyepiece - 470x Magnification

Sold Separately

Moon with 25mm Eyepiece

94x Magnification

(Included with This Telescope)

Moon with 10mm Eyepiece

235x Magnification

Sold Separately

Moon with 5mm Eyepiece

470x Magnification

Sold Separately

Andromeda with 36mm Eyepiece

65x Magnification

Sold Separately

Andromeda with 25mm Eyepiece

94x Magnification

(Included with This Telescope)

Andromeda with 10mm Eyepiece

235x Magnification

Sold Separately

What's in the Box

  • CGX-L Equatorial Head and tripod
  • Accessory Tray
  • 1 x 22 lbs counterweight
  • NexStar+ Hand Control
  • DC Power Cable (item# 18769)

8mm Allen wrench (contained in rear carry handle)

This Kit Product Contains the Following SKUs:

Specifications

OPTICAL TUBE INFO:
Optical Design: Schmidt-Cassegrain
Aperture: 235mm (9.25")
Focal Length: 2350mm (93")
Focal Ratio: f/10
Focal Length of Eyepiece 1: 25mm (.98")
Magnification of Eyepiece 1: 94x
Finderscope: 6x30
Star Diagonal: 1.25" Star Diagonal
Optical Tube: Aluminum
Highest Useful Magnification: 555x
Lowest Useful Magnification: 34x
Limiting Stellar Magnitude: 14.4
Resolution (Rayleigh): 0.59 arc seconds
Resolution (Dawes): 0.49 arc seconds
Light Gathering Power (Compared to human eye): 1127x
Secondary Mirror Obstruction: 85mm (3.35")
Secondary Mirror Obstruction by Diameter: 36%
Secondary Mirror Obstruction by Area: 13%
Optical Coatings: StarBright XLT
Optical Tube Length: 559mm (22")
Optical Tube Diameter: 271.78mm (10.7")
Optical Tube Weight: 20 lbs (9.07 kg)
Dovetail: CGE Dovetail Bar
MOUNT INFO:
Mount Type: Computerized Equatorial
Instrument load capacity: 75 lbs (34 kg)
Height adjustment range (includes mount and tripod): 1524mm - 1955.8mm (60" - 77")
Tripod adjustment range (tripod only): 838.2mm - 1397mm (33" - 55")
Equatorial height alone: 609.6mm (24")
Tripod Leg Diameter: 69.85mm (2.75") Steel tripod with graduated markings on lower section
Latitude adjustment range: 3° - 65°
Mount Head Weight: 52.6 lbs (23.8 kg)
Accessory Tray: Yes
Tripod Weight: 46.2 lbs (21 kg)
Weight of Counterweights: 1 x 22 lbs
Slew Speeds: 9 slew speeds - max speed 3°/second
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: EQ North and EQ South
GPS: N/A
Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports: 4 AUX Ports (Hand Control can use any AUX Port, 2 are located near dovetail saddle)
Autoguide Port: Yes, 2 Ports (one is located near the dovetail saddle)
USB Port: Yes, input for Mount and Hand Control
Power Requirements: 12V DC, 3 amps
Motor Drive: DC servo motors
Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction: Yes
Computerized Hand Control: Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons, USB 2.0 Port for PC connection
NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software: CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App
Total Kit Weight: 140.8 lbs (63.86 kg)
