Brand: Lunt Solar Systems

Lunt 40mm Dedicated Ha Solar Telescope - Mini Helical Focuser

LS40THa/B600

Brand: Lunt Solar Systems

Lunt 40mm Dedicated Ha Solar Telescope - Mini Helical Focuser

LS40THa/B600

When you're looking for the best dedicated solar scopes available, it doesn't take long for Lunt to show up. This is a deluxe portable package that will deliver fantastic views of the surface of the sun, along with flares and prominences.
Special Order
$903.00 USD

Easy Payment Options with .

How do I Special Order?
Special Order
$903.00 USD

Easy Payment Options with .

How do I Special Order?
Free Expert Support
Stress Free, Secure Shopping
30 Day Return Policy
Price Match Promise

Recommended Accessories

Full Details What Can I See? What's in the Box? Specifications Reviews and Questions Articles, Videos, Software, Links

Product Description

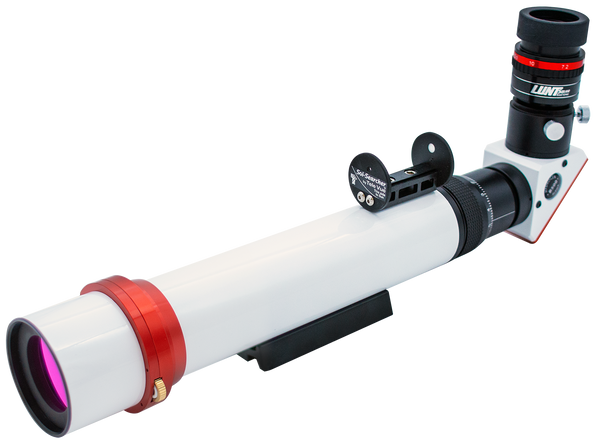

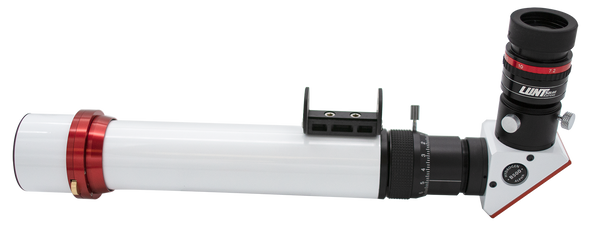

Easily portable and a joy to use, the Lunt 40 mm joins the Lunt Telescope lineup as our smallest aperture offering, while providing the power, amazing detail and quality you expect from a Lunt Telescope — all at an impressive ~4.0 mm solar image size!

The All New Lunt 40mm Solar Telescope provides the basic essentials perfect for a first time introduction to solar observing. A true grab-and-go dedicated Hydrogen-alpha telescope, the Lunt 40 mm F/10 system is sure to impress allowing both amateur and seasoned professions to experience the awe-inspiring phenomena of our closest Star!

Includes a 6mm Blocking Filter in 1.25" Diagonal, and Lunt's 1.25" Mini Helical Focuser

Focuser

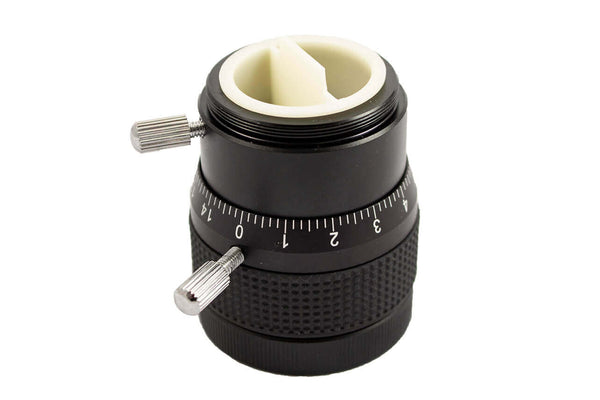

The Lunt Mini is a non-rotating helical focuser that provides a T2 (male) to T2 (female) thread connection. The focuser has 10 mm of precision travel, a brass compression ring for protection of eyepieces, and a locking collar. The T2 thread design is ideal for fine camera/eyepiece focus.

Blocking Filter

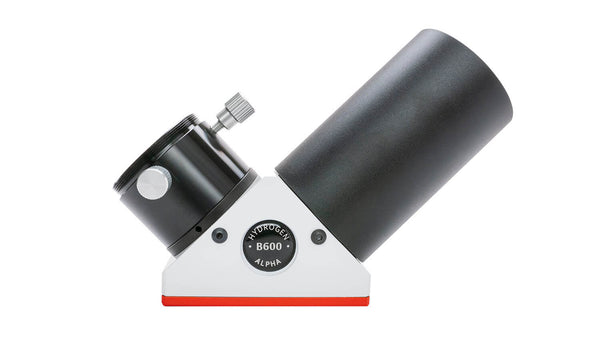

The Blocking Filter houses additional filters which are required for the safety and performance of the solar package. In addition, Lunt Solar blocking filters contain a unique filter system. We can only warranty safety or performance when one of our blocking filters is paired with a Lunt H-alpha filter or telescope.

Includes the B600 Blocking Filter in a 1.25" Diagonal

What can I see with a Lunt 40mm Dedicated Ha Solar Telescope - Mini Helical Focuser?

Here are some simulated views of common objects. Results with your telescope will vary with viewing conditions, obrits, equipment and more.

Jupiter with

25mm Eyepiece - 16x Magnification

(Sold Separately)

Jupiter with

10mm Eyepiece - 40x Magnification

Sold Separately

Jupiter with

5mm Eyepiece - 80x Magnification

Sold Separately

Moon with 25mm Eyepiece

16x Magnification

(Sold Separately)

Moon with 10mm Eyepiece

40x Magnification

Sold Separately

Moon with 5mm Eyepiece

80x Magnification

Sold Separately

Andromeda with 36mm Eyepiece

11x Magnification

Sold Separately

Andromeda with 25mm Eyepiece

16x Magnification

(Sold Separately)

Andromeda with 10mm Eyepiece

40x Magnification

Sold Separately

What's in the Box

  • Lunt 40 mm Dedicated H-alpha Solar OTA with Custom Foam
  • TeleVue Sol Searcher Sun finder built in
  • 4″ Vixen Style Dovetail
  • 6nm Blocking Filter
  • 1.25" Mini Helical Focuser

Specifications

Telescope Type Dedicated H-alpha
Universal Capabilities H-alpha
Aperture 40 mm
Objective Type Custom Doublet Optimized at 656 nm
Objective Coating Ion Assist Ultra-Narrowband AR (656 nm)
Focal Ratio F/10
Focal Length 400 mm
Focuser Mini Helical
Mounting Mounting Foot
Storage Box w/ Fitted Foam
H-alpha Etalon Type Internal Dedicated
Etalon Wavelength 656.28 nm
Etalon Bandpass <0.7 Å Single Stack, <0.5 Å Double Stack
Etalon Material UV Grade Fused Silica
Etalon Tuning Tilt
Doppler Shifting Instant
Blocking Filter Size 6nm Diagonal
Blocking Filter Bandpass 6 Å
Sun Finder Tele Vue Sol Searcher built in
