Product Description

Now equipped with Lunt’s newer, higher-performing etalons, these telescopes deliver a tighter ≤0.35Å FWHM per etalon, improved from the previous ~0.55Å design. In double-stack configuration, system bandwidth drops to approximately 0.22Å for even greater contrast and finer solar surface detail.

The LS60MT Imaging Kit upgrades the entry-level package with two key improvements for observers ready to capture the Sun. The B1200 blocking filter doubles the clear aperture to 12mm, providing the back-focus clearance and illumination circle that imaging sensors demand. The 7.2-21.5mm zoom eyepiece replaces the fixed 16mm, letting you frame full-disk views or push in tight on active regions without changing glass.

The same professional-grade ED doublet optics. The same Doppler True pressure tuning. The same day-to-night versatility. Now optimized for the observer who wants to capture what they see.

What You'll See

Everything the LS60MT reveals at <0.65Å bandpass, now with the optical clearance to put it on a sensor. The B1200's 12mm clear aperture ensures the full image circle reaches your camera without vignetting, while the zoom eyepiece lets you frame the exact field of view you need: full disk for timelapse sequences, tight crop for active region detail. Visually, the zoom eyepiece transforms the observing experience. Scan the full disk at low power to survey prominence activity and filament structure, then twist to higher magnification and resolve individual features in real time. No eyepiece swaps, no refocusing, no missed moments of good seeing.

Why This Package

If you are ready to start capturing the Sun or if you want the convenience of a zoom eyepiece for visual observing, this kit delivers both. The B1200 is the blocking filter that serious solar imagers choose: 12mm of clear aperture means your sensor sees the full, unvignetted image circle. The zoom eyepiece is a game-changer for solar observing sessions. Conditions change, targets move, and active regions evolve. Having continuous magnification adjustment without changing glass means you are always at the right power for what is happening on the Sun. Near-parfocal design keeps focus close across the zoom range.

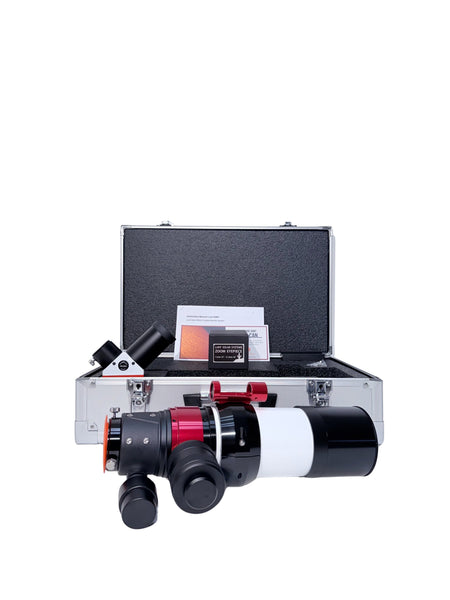

Package Includes

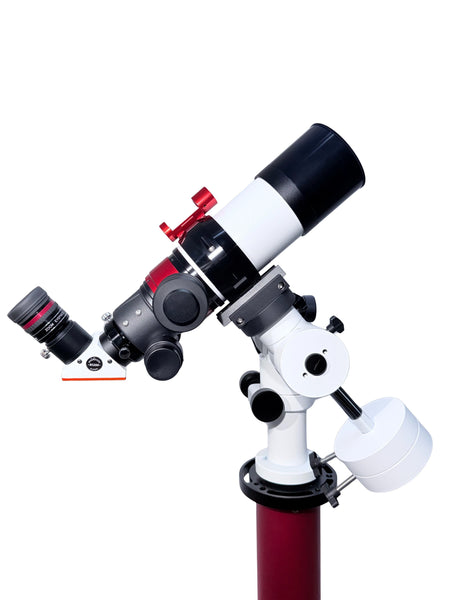

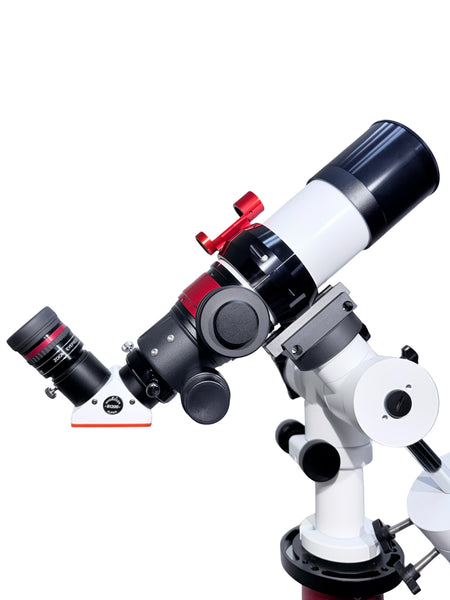

• LS60MT OTA: 70mm native aperture, 60mm H-alpha. 420mm f/7 ED Doublet. Internal pressure-tuned etalon, <0.65Å bandpass. Modular design for day/night use. ~7 lbs.

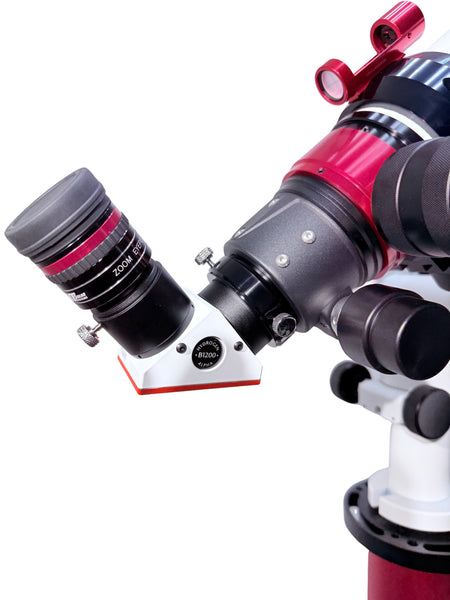

• B1200 Blocking Filter: 1.25" diagonal housing, 12mm clear aperture. Expanded aperture for imaging and wide-field visual.
• 2" R&P Focuser (10:1): Dual-speed with 10:1 fine focus. 55-60mm travel. 2.5-3 kg capacity. 2" compression ring with 1.25" adapter. ZWO EAF compatible.
• SunLock Red Dot Finder: Red dot projection onto glass reticle. Internal 3-point alignment screws. Red anodized aluminum.
• 4" Vixen Dovetail Plate: Black anodized aluminum. Two 1/4-20 tapped holes. Includes mounting screws. Universal mount compatibility.

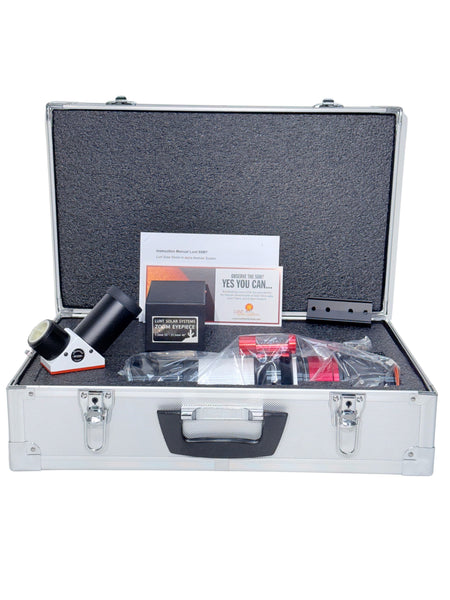

• Hard Case (60mm): Aluminum hard case with custom-fit foam insert. Sized for LS60MT system.
• 7.2-21.5mm Zoom Eyepiece: Variable FL. 1.25" barrel. 7 elements/4 groups. 0.1% AR coatings. 15mm eye relief. 53°-40° FOV. Near-parfocal. Full-disk to fine detail in one twist.
